EASYBEAT CD1600 Capacitor Discharge [CD] STUD WELDER

Part No: CD1600
$2,400.00
In Stock


Calculate Shipping

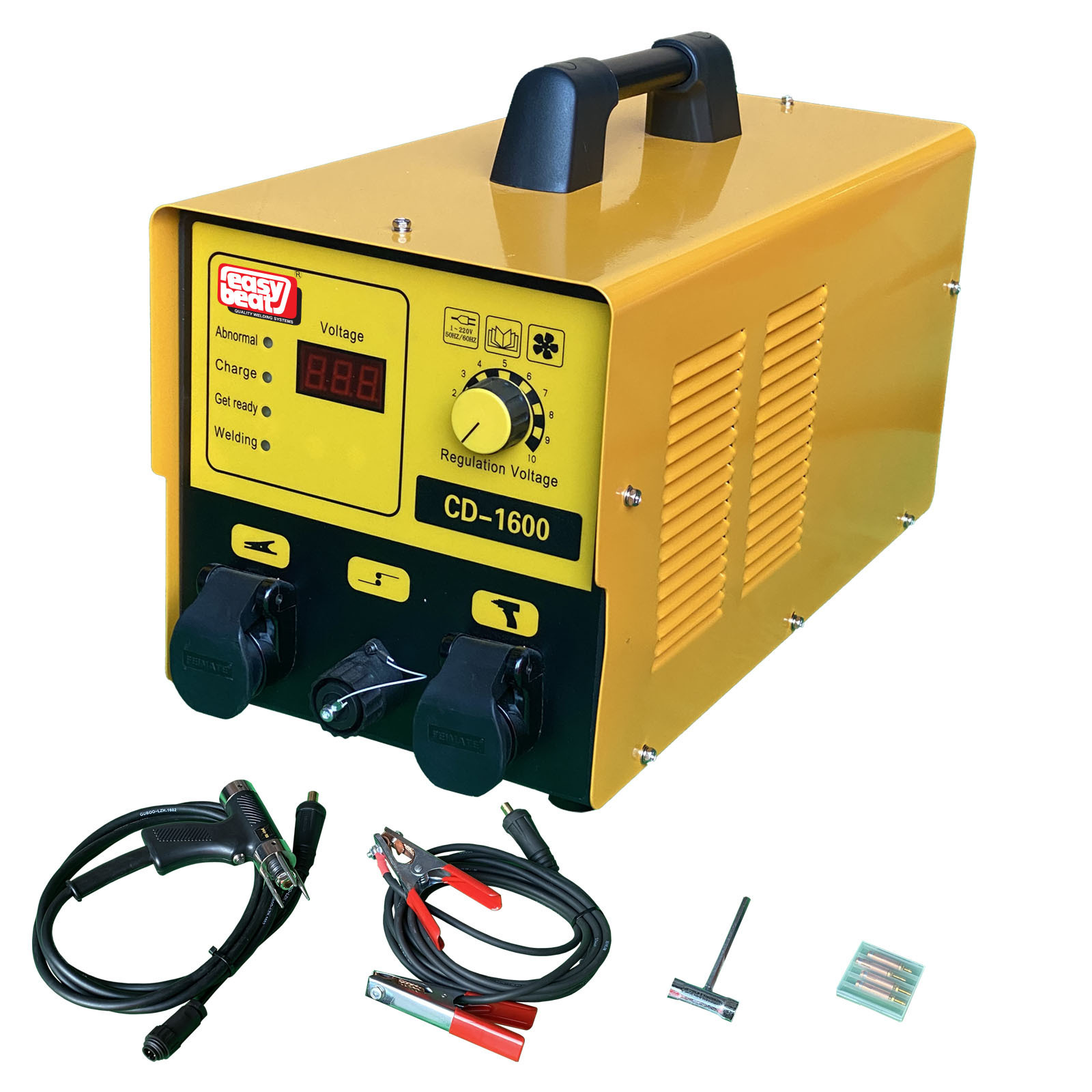

EASYBEAT CD1600 Capacitor Discharge [CD] Stud Welder

This provides many advantages:-

  • including a clean finish
  • clean appearance for an added benefit in many applications
  • The weld bond is created in a short cycle
  • With plus exhibits good strength in the actual studweld. In fact, upon destructive testing
  • Stud Welding method is impressively fast & efficient.
  • This allows you to up the pace of your work to save money and time

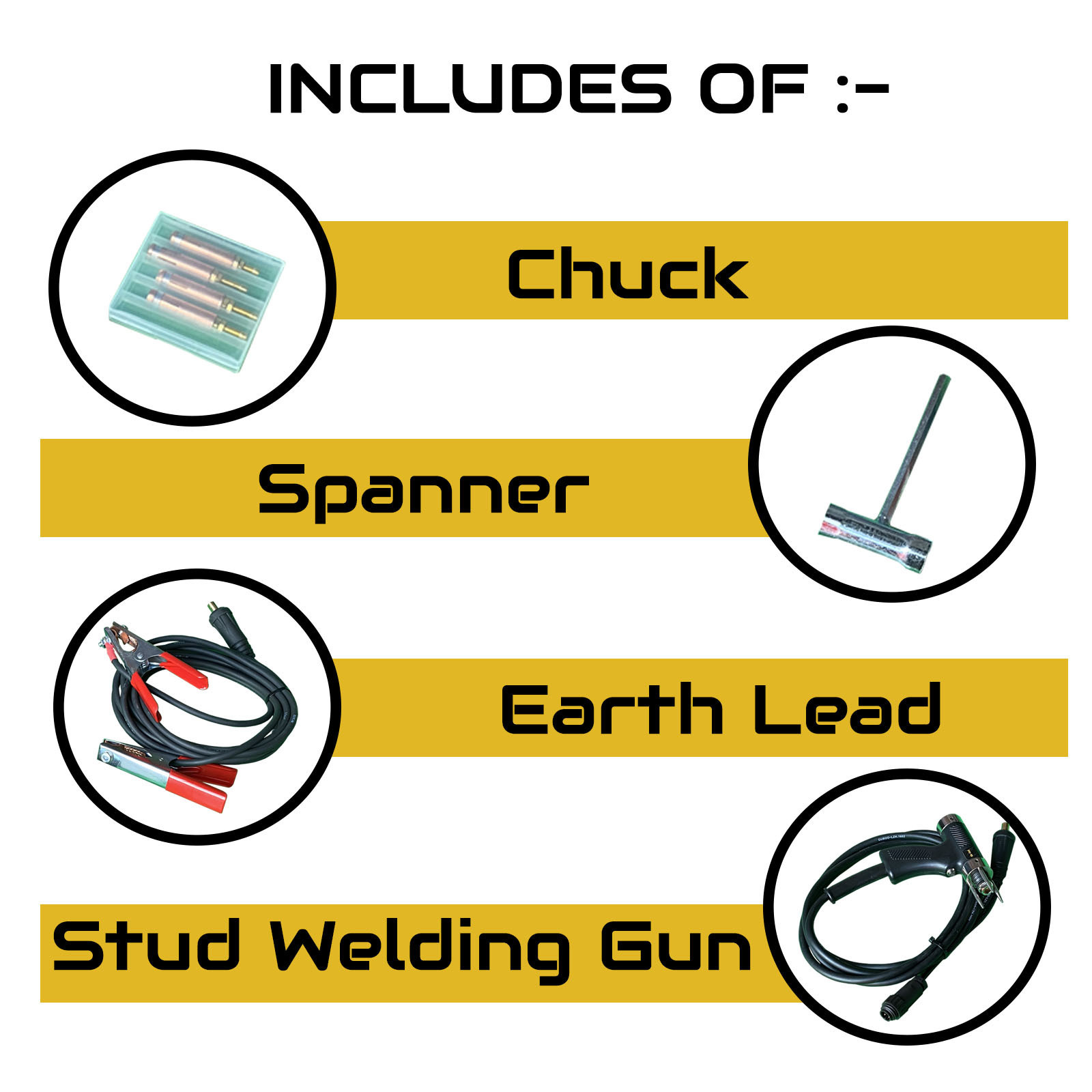

  • Contact-type CD Stud Welder ▪ Stud Range: M2 to M6 ▪ Materials include; Mild Steel, Stainless Steel, Aluminium, Brass ▪ Suitable for thin sheets ▪ Suitable for HVAC applications ▪ Easy to operate ▪ Powerful, Compact & Robust ▪ Includes LZ-HQ-02 Stud Gun & Earth Cables

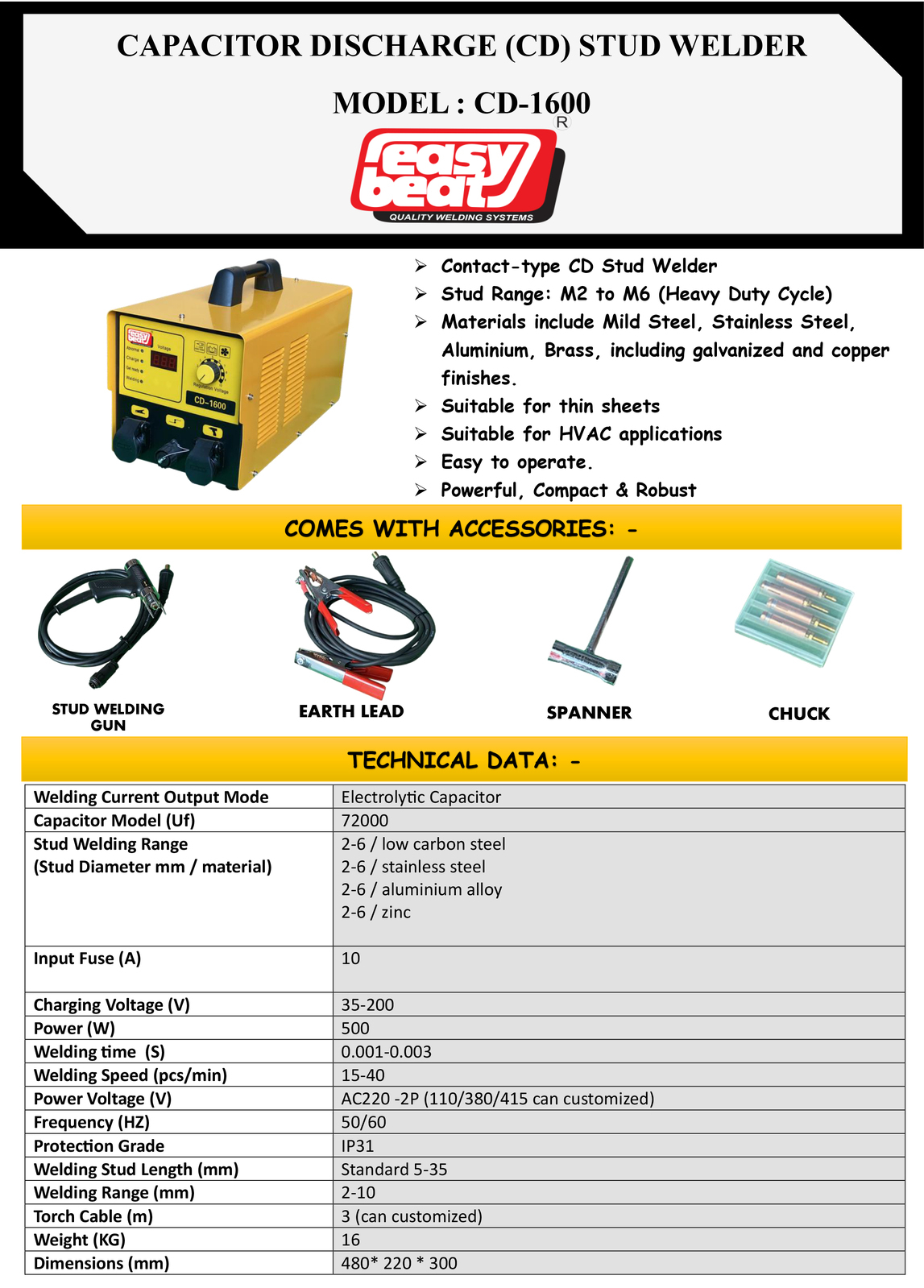

Technical Data



Welding Range Ø [mm]

M2 to M6 Studs

Welding Rate

M2 = 40 studs/min.

M3 = 33 studs/min.

M6 = 20 studs/min.

Welding Materials

Mild Steel, Stainless Steel, Aluminum, Brass; including Zinc, Galvanized & Copper finishes

Capacitance

16,000 µF

Welding Time [ms]

5 to 200 ms

Charging Voltage

95V

Primary Power

230/240V, 50/60Hz, 1 Phase

Power Source

Capacitor

Cooling Type

Temperature Controlled Cooling Fan

IP Code

IP 23

Machine Dimensions [W x D x H]

35cm x 45cm x 17cm

Weight [unboxed machine]

23 KG

Suitable Stud Welding Gun

LZ-HQ-02 Capacitor Discharge Gun

Capacitor Discharge stud welding eliminates drilling, tapping, punching, riveting, gluing, and screwing; and is especially beneficial when working with thin gauge materials due to the absence of reverse-side marring or discoloration.

What is the capacitor discharge method of welding?

Capacitor Discharge Welding (CD Welding) is the fastest form of resistance welding and utilizes capacitors to deliver the power to the part. Capacitors are charged with large amounts of energy. Then, the energy is rapidly released into the parts within milliseconds.

What is a capacitor discharge stud?

Capacitor Discharge stud welding is a low cost, fast, and flexible form of welding where lightweight equipment is highly beneficial. Our light yet strong CD product range offers the ideal solutions to Capacitor Discharge stud welding needs in a range of industries.



(Part Number: CD1600)

SKU CD1600
Brand Easybeat
Shipping Weight 20.0000kg
Shipping Width 0.270m
Shipping Height 0.390m
Shipping Length 0.530m
Shipping Cubic 0.055809000m3
Unit Of Measure ea
